特點：
1、適用于大規格片劑的壓制�？捎糜谥扑�、化工、食品、電子、特種行業等。
2、 可壓制普通圓片、異型片、環形片，滿足用戶的不同需要。
3、整體模塊化設計，清潔維護方便。
4、 智能集中潤滑系統，可根據具體情況在智能集中潤滑系統上設定加潤滑油的時間間隔,并自動加油。保障各潤滑點得到充分潤滑。
5、大容積料倉可提高生產效率。
1. Suitable for pressing large-size tablets. It can be used in pharmaceutical, chemical, food, electronic and special industries.
2. It can press ordinary tablets, irregular tablets and ring tablets to meet the different needs of users.
3. The overall modular design, convenient cleaning and maintenance.
4. Intelligent centralized lubrication system, according to the specific situation in the intelligent centralized lubrication system set lubricating oil time interval, and automatic refueling. Ensure that all lubricating points are fully lubricated.
5. The large-volume storage bunker can improve the production efficiency.

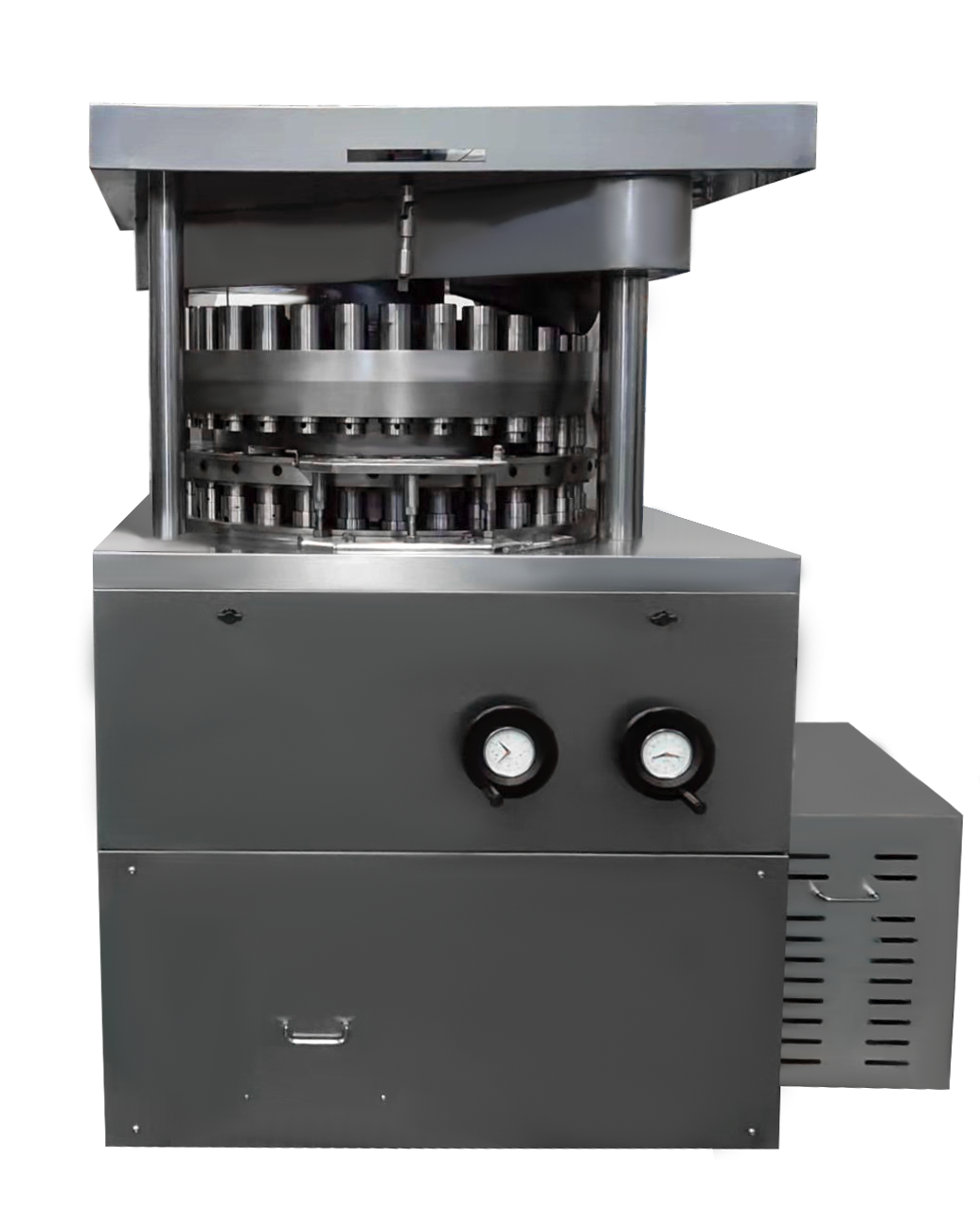

型號Product model | ZPHT31 |
沖頭數目 Number of stations | 31 |
上下沖身直徑 Upper and lower punch diameter | mm | Φ60 |
上沖桿總長 Upper punch rod length | mm | 227 |
下沖桿總長 Lower punch rod length | mm | 240 |
中模直徑 Diameter of die | mm | Φ67 |
中模高度 Middle die height | mm | 58 |
轉速范圍 Rotation speed range | r/min | 22.5 |
片徑 Max tablet diameter | mm | 60(環形片50） |
充填深度 Max filling depth | mm | 20-50 |
片厚 Max tablet thickness | mm | 12.5-19.5 |
主壓 Max main pressure | kN | 300 |
主電機功率 Main motor power | kW | 11 |
外形尺寸 Dimension(Length × width ) | mm | 1700*1600 |
機器高度 Height | mm | 2000 |
機器重量 Weight | kg | 約4000 |
注：表中產量為理論轉速時的產量，實際生產中由于顆粒狀態、片劑壓力、片劑直徑厚度等諸多因素會影響產量。
Note: The maximum output in the table is the output at the theoretical maximum rotation speed. In actual production, many factors such as particle state, tablet pressure, tablet diameter and thickness will affect the output.
